500 Ton Van Dorn

Hydraulic Clamp

what it
offers

Tried, Tested, and True

Reliable molding machinery is what our customers have come to expect with the 500 Ton Van Dorn. Featuring a screw diameter of 3.15 inches, a 60-ounce barrel, and a press open of more than 51 inches, this remains a favorite here.

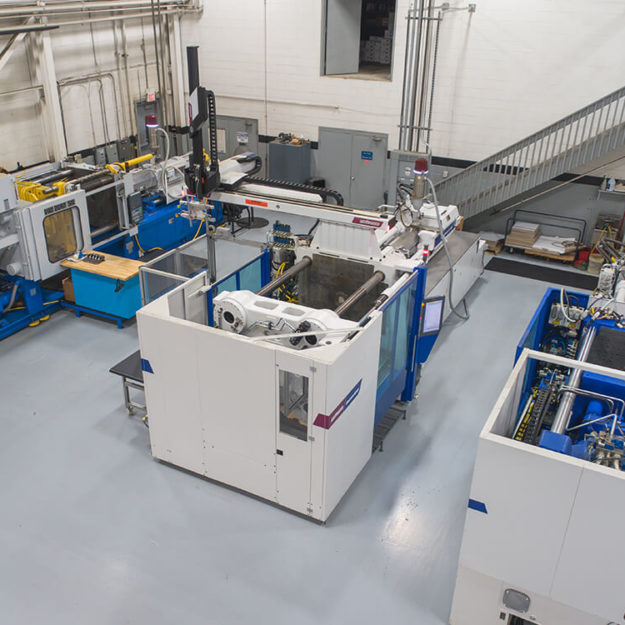

350, 450, and 500, PMD069
Crane, PMD032 (1)
pmd-home-bg
3300 Ton Van Dorn and 1700 Ton Wittmann Battenfeld, PMD072

60-Ounce Barrel

2 Core Pulls

Minimum Mold Thickness – 11 ½”

Maximum Press Open – 51 ½”

Intensification Ratio – 10:1 / Screw Diameter – 3.15”

350, 450, and 500, PMD069
Crane, PMD032 (1)
pmd-home-bg
3300 Ton Van Dorn and 1700 Ton Wittmann Battenfeld, PMD072

60-Ounce Barrel

2 Core Pulls

Minimum Mold Thickness – 11 ½”

Maximum Press Open – 51 ½”

Intensification Ratio – 10:1 / Screw Diameter – 3.15”

Tie Bar Spacing & Additional Highlights

One of the longest-lasting machines we have here at PMD, the 500 Ton Van Dorn has withstood the test of time and for good reason. Its ejector pattern is as follows:

  • 16” x 4” / 7” x 7”
  • 28” x 6”

We'll Make It Work

Plastic Molding Development Inc. stands out from the rest. Regardless of the size or shape of plastic molding you need, PMD has Wittmann Battenfeld and Van Dorn machines to help you get the job done. At our secure and efficient 35,000-square-foot molding facility in Sterling Heights, Michigan, you will find 170- to 3,300-ton machines that offer state-of-the-art, robotic options as well as the classic reliability our customers have come to expect.
