170 Ton Van Dorn

Toggle Clamp

What It
Offers

Small But Mighty

Our smallest machine, the 170 ton Van Dorn features a toggle clamp, 10.7-ounce barrel, and a maximum mold height of less than 19 inches. It offers all the power you need in a little machine.

PMD08
home_2000tonvandorn (1)
PMD025

10.7 oz. Barrel

2 Core Pulls

Minimum Mold Height – 6 ⅛”

Maximum Mold Height – 18 9/16”

Maximum Press Open – 34”

Intensification Ratio – 10:1 / Screw Diameter – 1.77”

PMD08
home_2000tonvandorn (1)
PMD025

10.7 oz. Barrel

2 Core Pulls

Minimum Mold Height – 6 ⅛”

Maximum Mold Height – 18 9/16”

Maximum Press Open – 34”

Intensification Ratio – 10:1 / Screw Diameter – 1.77”

The 170 ton Van Dorn features a toggle clamp, 10.7-ounce barrel, and a maximum mold height of less than 19 inches. It offers all the power you need in a little machine.

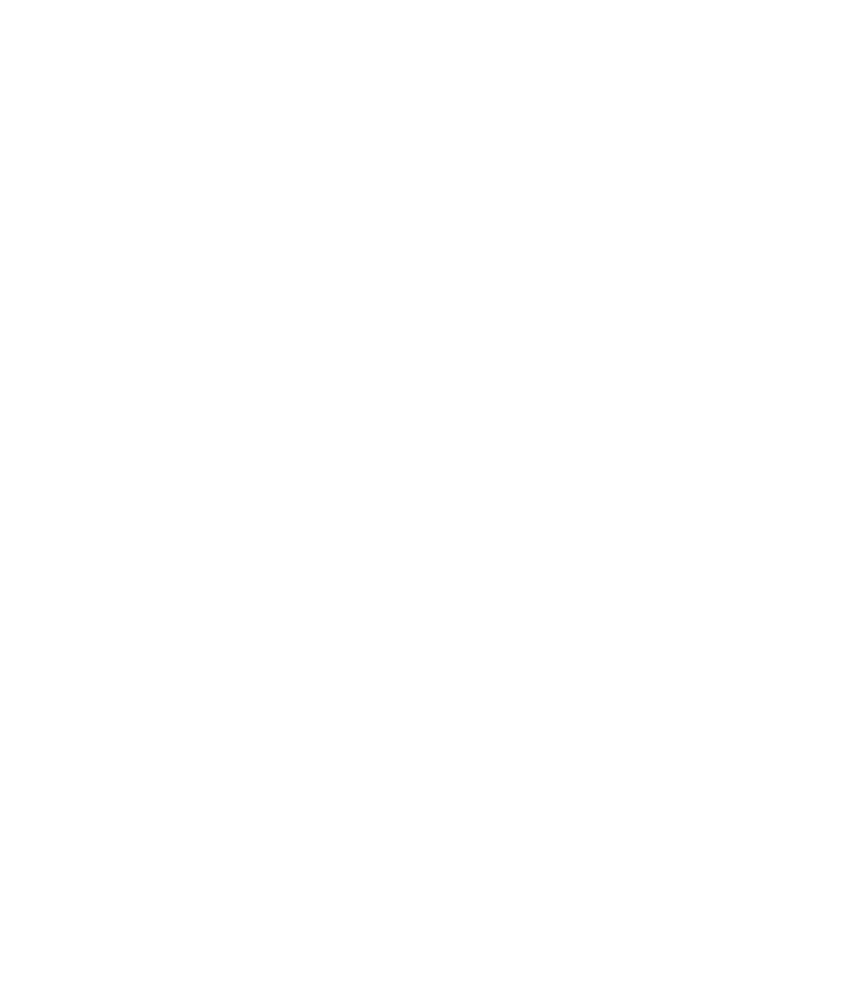

Tie Bar Spacing & Additional Details

Our smallest machine, this Van Dorn offers a toggle clamp, two core pulls, and open space of 34 inches. The ejector pattern is as follows:

  • 16” x 4”
  • 7” x 7”

We'll Make It Work

Plastic Molding Development Inc. stands out from the rest. Regardless of the size or shape of plastic molding you need, PMD has Wittmann Battenfeld and Van Dorn machines to help you get the job done. At our secure and efficient 35,000-square-foot molding facility in Sterling Heights, Michigan, you will find 170- to 3,300-ton machines that offer state-of-the-art, robotic options as well as the classic reliability our customers have come to expect.
